第2讲 ggplot2 数据可视化

class: center, middle, inverse, title-slide

.title[
# 量化金融与金融编程
]
.subtitle[
## L02 ggplot2 数据可视化
]
.author[
### 曾永艺
]
.institute[
### 厦门大学管理学院
]
.date[
### 2023-09-22
]

---

class: middle, hide_logo
background-image: url(imgs/logo-ggplot2.png)
background-size: 10em
background-position: 90% 50%

<div>
<style type="text/css">.xaringan-extra-logo {
width: 50px;
height: 50px;
z-index: 0;
background-image: url(imgs/logo-sm.png);
background-size: contain;
background-repeat: no-repeat;
position: absolute;
top:0.5em;right:0.5em;
}
</style>
<script>(function () {
 let tries = 0
 function addLogo () {
 if (typeof slideshow === 'undefined') {
 tries += 1
 if (tries < 10) {
 setTimeout(addLogo, 100)
 }
 } else {
 document.querySelectorAll('.remark-slide-content:not(.title-slide):not(.inverse):not(.hide_logo)')
 .forEach(function (slide) {
 const logo = document.createElement('a')
 logo.classList = 'xaringan-extra-logo'
 logo.href = 'https://qfwr2022.netlify.app'
 slide.appendChild(logo)
 })
 }
 }
 document.addEventListener('DOMContentLoaded', addLogo)
})()</script>
</div>

- ## .font120[<svg aria-hidden="true" role="img" viewBox="0 0 581 512" style="height:1em;width:1.13em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:currentColor;overflow:visible;position:relative;"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg>] 的绘图系统

- ## `ggplot2` 入门

- ### The Layered Grammar of Graphics

  - ### 将数据映射为几何对象的图形属性

  - ### 统计变换、位置调整、坐标、分面

  - ### 标签、标注、标度、主题等

- ## `ggplot2` extensions

---

### 一图胜千言

---
class: inverse, center, middle

# 1. .font120[<svg aria-hidden="true" role="img" viewBox="0 0 581 512" style="height:1em;width:1.13em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:currentColor;overflow:visible;position:relative;"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg>] 的绘图系统

---

### .font120[<svg aria-hidden="true" role="img" viewBox="0 0 581 512" style="height:1em;width:1.13em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:currentColor;overflow:visible;position:relative;"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg>] 的绘图系统

---

.pull-left[

- .font120[高阶绘图函数]
    - **`plot()`**
    - `barplot()`、`pie()`、`dotchart()`、`boxplot()`、`hist()`、
    `stripchart()`、`stem()`、`smoothScatter()`、`spineplot()`、
    `mosaicplot()`、`pairs()`、`matplot()`、`image()`、
    `contour()`、`persp()` ……

- .font120[低阶绘图函数]
    - `points()`、`lines()`、`segments()`、`arrows()`、`xspline()`、`rect()`、`polygon()`、`polypath()`、`rasterImage()`、`title()`、`text()`、`legend()` 等

]

.center[示例]

.pull-right[
.code70[

```r
EUSM <- window(EuStockMarkets, 1992, 1994)

plot(EUSM[, "FTSE"], ylim = range(EUSM),
     xlab = "Time", ylab = "Price", adj = 1,
     cex.main = 1.5)
lines(EUSM[, "DAX"], lty = "dashed")
title(main = "Index's Price")
legend(1992, 3450, c("FTSE", "DAX"),
       lty = c("solid", "dashed"), bty = "n")
```

<img src="L02_Visualization_files/figure-html/EUSM-1.png" style="display: block; margin: auto;" />
]
]

---
class: inverse, center, middle
background-image: url(imgs/logo-ggplot2.svg)
background-size: 12%
background-position: 18% 50%

# 2. `ggplot2`.font60[v3.4.3] 入门

---
layout: true

### .bold[2.1 The Layered Grammar of Graphics]

---

.font130[_Data Visualization_：将.bold[数据]映射为.bold[几何对象的美学属性]]

.font110[

- 数据（.red[data]）：我们想要可视化的对象，包含变量
- 几何对象（.red[geom]etries)：用来呈现数据的几何图形对象，如点、条形、线条等
- 美学属性（.red[aes]thetic）：几何对象的视觉属性，如`x`坐标和`y`坐标位置、颜色、形状等

]

---

.font130[`ggplot2` 的语法模板]

.code150[

```r
*ggplot(data = <DATA>) +
* <GEOM_FUNCTION>(
* mapping = aes(<MAPPINGS>),
 stat = <STAT>,
 position = <POSITION>
 ) +
 <COORDINATE_FUNCTION> +
 <FACET_FUNCTION>
```
]

---
layout: true

### .bold[2.2 将.red[数据]映射为几何对象的美学属性]

---

```r
library(tidyverse)
```

```r
mpg  # print(mpg)
```

```
#> # A tibble: 234 × 11
#> manufacturer model displ year cyl trans drv cty hwy fl class
#> <chr> <chr> <dbl> <int> <int> <chr> <chr> <int> <int> <chr> <chr>
#> 1 audi a4 1.8 1999 4 auto(l5) f 18 29 p compact
#> 2 audi a4 1.8 1999 4 manual(m5) f 21 29 p compact
#> 3 audi a4 2 2008 4 manual(m6) f 20 31 p compact
#> # ℹ 231 more rows
```

```r
# 查看ggplot2包内置数据集mpg的帮助文档
?mpg  # help(mpg)
```

1. `displ`: a car's engine size, in litres.
2. `hwy`: a car's fuel efficiency on the highway, in miles per gallon (mpg).
3. `class`: "type" of car
...

---
layout: true

### .bold[2.2 将数据.red[映射为几何对象的美学属性]]

---
count: false

```r
ggplot()
```

---
count: false

```r
ggplot(data = mpg)                           # 数据集
```

---
count: false

```r
ggplot(data = mpg,                           # 数据集
       mapping = aes(x = displ, y = hwy))    # 映射：变量 -> x坐标和y坐标
```

---
count: false

```r
ggplot(data = mpg,                           # 数据集
       mapping = aes(x = displ, y = hwy)) +  # 映射：变量 -> x坐标和y坐标
  geom_point()                               # 几何对象
```

---

```r
g_mpg <- ggplot(data = mpg, # 数据集
 mapping = aes(x = displ, y = hwy)) + # 映射：变量 -> x坐标和y坐标
 geom_point() # 几何对象
```

--
.pull-left[

```r
print(g_mpg)
```

<img src="L02_Visualization_files/figure-html/mapping1-6-1.png" width="100%" style="display: block; margin: auto;" />
]

--
.pull-right[

```r
names(g_mpg)
```

```
#> [1] "data"        "layers"
#> [3] "scales"      "mapping"
#> [5] "theme"       "coordinates"
#> [7] "facet"       "plot_env"
#> [9] "labels"
```

```r
str(g_mpg)  # View(g_mpg)
```

```
#> List of 9
#> $ data : tibble [234 × 11] (S3: tbl_df/tbl/data.frame)
#> ..$ manufacturer: chr [1:234] "audi" "audi" "audi" "audi" ...
#> ..$ model : chr [1:234] "a4" "a4" "a4" "a4" ...
#> ..$ displ : num [1:234] 1.8 1.8 2 2 2.8 2.8 3.1 1.8 1.8 2 ...
#> ..$ year : int [1:234] 1999 1999 2008 2008 1999 1999 2008 1999 1999 2008 ...
#> ..$ cyl : int [1:234] 4 4 4 4 6 6 6 4 4 4 ...
#> ..$ trans : chr [1:234] "auto(l5)" "manual(m5)" "manual(m6)" "auto(av)" ...
#> ..$ drv : chr [1:234] "f" "f" "f" "f" ...
#> ..$ cty : int [1:234] 18 21 20 21 16 18 18 18 16 20 ...
#> ..$ hwy : int [1:234] 29 29 31 30 26 26 27 26 25 28 ...
#> ..$ fl : chr [1:234] "p" "p" "p" "p" ...
#> ..$ class : chr [1:234] "compact" "compact" "compact" "compact" ...
#> $ layers :List of 1
#> ..$ :Classes 'LayerInstance', 'Layer', 'ggproto', 'gg' <ggproto object: Class LayerInstance, Layer, gg>
#> aes_params: list
#> compute_aesthetics: function
#> compute_geom_1: function
#> compute_geom_2: function
#> compute_position: function
#> compute_statistic: function
#> computed_geom_params: list
#> computed_mapping: uneval
#> computed_stat_params: list
#> constructor: call
#> data: waiver
#> draw_geom: function
#> finish_statistics: function
#> geom: <ggproto object: Class GeomPoint, Geom, gg>
#> aesthetics: function
#> default_aes: uneval
#> draw_group: function
#> draw_key: function
#> draw_layer: function
#> draw_panel: function
#> extra_params: na.rm
#> handle_na: function
#> non_missing_aes: size shape colour
#> optional_aes:
#> parameters: function
#> rename_size: FALSE
#> required_aes: x y
#> setup_data: function
#> setup_params: function
#> use_defaults: function
#> super: <ggproto object: Class Geom, gg>
#> geom_params: list
#> inherit.aes: TRUE
#> layer_data: function
#> map_statistic: function
#> mapping: NULL
#> position: <ggproto object: Class PositionIdentity, Position, gg>
#> compute_layer: function
#> compute_panel: function
#> required_aes:
#> setup_data: function
#> setup_params: function
#> super: <ggproto object: Class Position, gg>
#> print: function
#> setup_layer: function
#> show.legend: NA
#> stat: <ggproto object: Class StatIdentity, Stat, gg>
#> aesthetics: function
#> compute_group: function
#> compute_layer: function
#> compute_panel: function
#> default_aes: uneval
#> dropped_aes:
#> extra_params: na.rm
#> finish_layer: function
#> non_missing_aes:
#> optional_aes:
#> parameters: function
#> required_aes:
#> retransform: TRUE
#> setup_data: function
#> setup_params: function
#> super: <ggproto object: Class Stat, gg>
#> stat_params: list
#> super: <ggproto object: Class Layer, gg>
#> $ scales :Classes 'ScalesList', 'ggproto', 'gg' <ggproto object: Class ScalesList, gg>
#> add: function
#> clone: function
#> find: function
#> get_scales: function
#> has_scale: function
#> input: function
#> n: function
#> non_position_scales: function
#> scales: list
#> super: <ggproto object: Class ScalesList, gg>
#> $ mapping :List of 2
#> ..$ x: language ~displ
#> .. ..- attr(*, ".Environment")=<environment: R_GlobalEnv>
#> ..$ y: language ~hwy
#> .. ..- attr(*, ".Environment")=<environment: R_GlobalEnv>
#> ..- attr(*, "class")= chr "uneval"
#> $ theme : list()
#> $ coordinates:Classes 'CoordCartesian', 'Coord', 'ggproto', 'gg' <ggproto object: Class CoordCartesian, Coord, gg>
#> aspect: function
#> backtransform_range: function
#> clip: on
#> default: TRUE
#> distance: function
#> expand: TRUE
#> is_free: function
#> is_linear: function
#> labels: function
#> limits: list
#> modify_scales: function
#> range: function
#> render_axis_h: function
#> render_axis_v: function
#> render_bg: function
#> render_fg: function
#> setup_data: function
#> setup_layout: function
#> setup_panel_guides: function
#> setup_panel_params: function
#> setup_params: function
#> train_panel_guides: function
#> transform: function
#> super: <ggproto object: Class CoordCartesian, Coord, gg>
#> $ facet :Classes 'FacetNull', 'Facet', 'ggproto', 'gg' <ggproto object: Class FacetNull, Facet, gg>
#> compute_layout: function
#> draw_back: function
#> draw_front: function
#> draw_labels: function
#> draw_panels: function
#> finish_data: function
#> init_scales: function
#> map_data: function
#> params: list
#> setup_data: function
#> setup_params: function
#> shrink: TRUE
#> train_scales: function
#> vars: function
#> super: <ggproto object: Class FacetNull, Facet, gg>
#> $ plot_env :<environment: R_GlobalEnv>
#> $ labels :List of 2
#> ..$ x: chr "displ"
#> ..$ y: chr "hwy"
#> - attr(*, "class")= chr [1:2] "gg" "ggplot"
```
]

---

```r
ggplot(data = mpg) +
  geom_point(
*   mapping = aes(x = displ, y = hwy, colour = class)  # 3个映射
  )
```

---

```r
ggplot(data = mpg) +
  geom_point(mapping = aes(x = displ, y = hwy, shape = class))
```

```
#> Warning: The shape palette can deal with a maximum of 6 discrete values because more than
#> 6 becomes difficult to discriminate; you have 7. Consider specifying shapes
#> manually if you must have them.
```

```
#> Warning: Removed 62 rows containing missing values (`geom_point()`).
```

---

.font120[
- R内置有25个形状（shape），在`ggplot2`中可用名字或数字进行设定
]
.pull-left[
<img src="L02_Visualization_files/figure-html/shapes-name-1.png" width="95%" style="display: block; margin: auto;" />

]

.pull-right[
<img src="L02_Visualization_files/figure-html/shapes-id-1.png" width="95%" style="display: block; margin: auto;" />

]

.font120[
- 设定图形属性相关的说明文档 .content-box-yellow.font80[`vignette("ggplot2-specs")`]
]

---

```r
ggplot(data = mpg) +
  geom_point(
    mapping = aes(x = displ, y = hwy),
*   shape = "triangle", size = 3, colour = "red", alpha = 0.3
    # 变量无关（“大家都一样”，即非映射）的几何对象图形属性应在aes()外进行设定
  )
```

---

```r
# layered!
ggplot(data = mpg) +
  geom_point(mapping = aes(x = displ, y = hwy)) +
* geom_smooth(mapping = aes(x = displ, y = hwy))  # layered!
```

---

```r
ggplot(
  data = mpg,
* mapping = aes(x = displ, y = hwy)  # 共用映射，提前至ggplot()中
) +
  geom_point() +
  geom_smooth()
```

---

```r
*ggplot(mpg, aes(displ, hwy)) +       # 省略常用参数名
* geom_point(aes(colour = class)) +  # 图层自用映射
* geom_smooth(data = filter(mpg, class == "pickup"))  # 不同的数据集
```

---
layout: false
class: hide_logo

## 🙋‍♂️ Your Turn!

.pull-left[

.font120[在 RStudio控制台 中输入以下代码（高亮处填补恰当内容——记得善用.kbd[`F1`] ），从而得到右边所示的图形：]

<code class ='r hljs remark-code'>library(ggplot2) ggplot(economics) + &nbsp;&nbsp;geom_hline( &nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; = 3.5, &nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; = 'white', &nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; = 2 &nbsp;&nbsp;) + &nbsp;&nbsp;geom &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;( &nbsp;&nbsp;&nbsp;&nbsp;aes(x = &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;, &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;y = &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;) &nbsp;&nbsp;)</code>

<img src="L02_Visualization_files/figure-html/yt-0-flaired-1.png" width="0.1" />
]

.pull-right[

]

---
layout: true

### .bold[2.3 .red[统计变换]、位置调整、坐标、分面]

---

```r
ggplot(data = diamonds) +
  geom_bar(mapping = aes(x = cut))
```

.red.font110[Where comes the "count" in y-axis? 😅]

---

.font110[下面的代码会得到和使用 `geom_bar()` 相同的结果]

```r
ggplot(data = diamonds) +
* stat_count(mapping = aes(x = cut))
```

---

```r
ggplot(data = diamonds) +
  geom_bar(mapping = aes(x = cut,
                         y = after_stat(prop),   # ?aes_eval
                         group = 1))             # ?aes_group_order
```

---

```r
ggplot(data = diamonds %>% group_by(cut) %>% count()) +  # what's this?!
  geom_bar(
    mapping = aes(x = cut, y = n),
*   stat = "identity"
  )
```

---
layout: true

### .bold[2.3 统计变换、.red[位置调整]、坐标、分面]

---

```r
ggplot(data = diamonds) +
  geom_bar(mapping = aes(x = cut, fill = clarity))
# geom_bar()默认的position = "stack"
```

---

```r
ggplot(data = diamonds) +
  geom_bar(
    mapping = aes(x = cut, fill = clarity),
*   position = "dodge"  # position = position_dodge(width = 0.9)
  )
```

---

```r
ggplot(data = mpg) +
  geom_point(
    mapping = aes(x = displ, y = hwy),
*   position = "jitter"   # same as `ggplot() + geom_jitter()`
  )
```

---
layout: true

### .bold[2.3 统计变换、位置调整、.red[坐标]、分面]

---

```r
ggplot(data = mpg, mapping = aes(x = class, y = hwy)) +
  geom_boxplot() +
* coord_flip()  # ggplot2 3.3.0后直接调换x，y参数即可
```

---

```r
bar <- ggplot(data = diamonds) + # 将图形对象存为变量bar，可在Environment标签页中检查其内容
 geom_bar(
 mapping = aes(x = cut, fill = cut), show.legend = FALSE, width = 1
 ) +
 theme(aspect.ratio = 1) + labs(x = NULL, y = NULL)
*bar + coord_polar()
```

---
layout: true

### .bold[2.3 统计变换、位置调整、坐标、.red[分面]]

---

```r
ggplot(data = mpg, mapping = aes(x = displ, y = hwy)) +
  geom_point(data = mutate(mpg, class = NULL), colour = "grey") +
  geom_point() +
* facet_wrap(vars(class), nrow = 2) # facet_wrap(~ class, nrow = 2)
```

---

```r
ggplot(data = mpg, mapping = aes(x = displ, y = hwy)) +
  geom_point(data = transform(mpg, cyl = NULL), colour = "grey") +
  geom_point() +
* facet_grid(rows = vars(drv), cols = vars(cyl))  # facet_grid(drv ~ cyl)
```

---
layout: true

### .bold[2.4 .red[标签]、标注、标度、主题等]

---

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
  geom_smooth(se = FALSE) +
* labs(  # 标题、小标题等
*   title = "Fuel efficiency",
*   subtitle = "... generally decreases with engine size",
*   caption = "Data from fueleconomy.gov"
* )
```

---

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
  geom_smooth(se = FALSE) +
* labs( # 图形属性 = 标签
*   x = "Engine displacement (L)",
*   y = "Highway fuel economy (mpg)",
*   colour = "Car type"
* )
```

---
layout: true

### .bold[2.4 标签、.red[标注]、标度、主题等]

---

```r
# 生成辅助数据集
best <- mpg %>%
 group_by(class) %>%
 filter(row_number(desc(hwy)) == 1)
```

.pull-left[

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
* geom_text(
    aes(label = model),
    data = best
  )
```

]

.pull-right[

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
* geom_label(
    aes(label = model), data = best,
    nudge_y = 2, alpha = 0.5
  )
```

]

---

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
* geom_point(size = 3, shape = 1, data = best) +
* ggrepel::geom_label_repel(aes(label = model), data = best)  # install ggrepel
```

---

.pull-left.code75[

```r
*library(ggtext)  # install it!

# 辅助数据
beetle <- mpg %>%
 filter(model == "new beetle") %>%
 filter(hwy == max(hwy)) %>%
 mutate(model =
 "<img src='imgs/beetle.png'
 width='25'/>")

ggplot(mpg, aes(displ, hwy)) +
 geom_point(aes(colour = class)) +
* geom_richtext(
 data = beetle,
 aes(label = model),
 fill = NA, colour = NA,
 hjust = 0, vjust = 0.5
 ) +
 labs(
 title = "Fuel efficiency

 ... generally **_decreases_** with
 engine size"
 ) -> p
```
]

.pull-right.code75[

```r
p + theme(
  plot.title.position = "plot",
* plot.title = element_textbox_simple(
    size = 15, lineheight = 1.2,
    padding = margin(5.5, 5.5, 5.5, 5.5),
    margin = margin(0, 0, 5.5, 0),
    linetype = 1,
    r = grid::unit(8, "pt"),
    fill = "#F0F7FF"
  ))
```

<img src="L02_Visualization_files/figure-html/label4-2-1.png" width="100%" style="display: block; margin: auto;" />
]

---
layout: true

### .bold[2.4 标签、标注、.red[标度]、主题等]

---

```r
ggplot(diamonds, aes(carat, price)) +
  geom_bin2d() +
* scale_x_log10() +
* scale_y_log10()
```

---

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point() +
* scale_y_continuous(
    name = "Highway fuel economy (mpg)",
    breaks = seq(0, 50, by = 10),
    limits = c(0, 100),
    expand = expansion(mult = 0.09, add = 1)
  )
```

---

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = drv, shape = drv)) +
* scale_colour_brewer(palette = "Set1")   # RColorBrewer::display.brewer.all()
```

---

```r
ggplot(mpg, aes(displ, hwy, colour = class)) +
  geom_point() +
* theme(legend.position = "bottom") +
  guides(
*   colour = guide_legend(nrow = 1, override.aes = list(size = 3))
  )
```

---
layout: true

### .bold[2.4 标签、标注、标度、.red[主题]等]

---

.pull-left[

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
  geom_smooth(se = FALSE) +
* theme_minimal()
```

<img src="L02_Visualization_files/figure-html/theme1-1.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[

```r
ggplot(mpg, aes(displ, hwy)) +
  geom_point(aes(colour = class)) +
  geom_smooth(se = FALSE) +
* ggthemes::theme_stata()   # install it!
```

<img src="L02_Visualization_files/figure-html/theme2-1.png" width="100%" style="display: block; margin: auto;" />
]

---

.code80[

```r
theme(line, rect, text, title, aspect.ratio, axis.title, axis.title.x,
      axis.title.x.top, axis.title.x.bottom, axis.title.y, axis.title.y.left,
      axis.title.y.right, axis.text, axis.text.x, axis.text.x.top,
      axis.text.x.bottom, axis.text.y, axis.text.y.left, axis.text.y.right,
      axis.ticks, axis.ticks.x, axis.ticks.x.top, axis.ticks.x.bottom, axis.ticks.y,
      axis.ticks.y.left, axis.ticks.y.right, axis.ticks.length, axis.ticks.length.x,
      axis.ticks.length.x.top, axis.ticks.length.x.bottom, axis.ticks.length.y,
      axis.ticks.length.y.left, axis.ticks.length.y.right, axis.line, axis.line.x,
      axis.line.x.top, axis.line.x.bottom, axis.line.y, axis.line.y.left,
      axis.line.y.right, legend.background, legend.margin, legend.spacing,
      legend.spacing.x, legend.spacing.y, legend.key, legend.key.size,
      legend.key.height, legend.key.width, legend.text, legend.text.align,
      legend.title, legend.title.align, legend.position, legend.direction,
      legend.justification, legend.box, legend.box.just, legend.box.margin,
      legend.box.background, legend.box.spacing, panel.background, panel.border,
      panel.spacing, panel.spacing.x, panel.spacing.y, panel.grid, panel.grid.major,
      panel.grid.minor, panel.grid.major.x, panel.grid.major.y, panel.grid.minor.x,
      panel.grid.minor.y, panel.ontop, plot.background, plot.title,
      plot.title.position, plot.subtitle, plot.caption, plot.caption.position,
      plot.tag, plot.tag.position, plot.margin, strip.background, strip.background.x,
      strip.background.y, strip.clip, strip.placement, strip.text, strip.text.x,
      strip.text.x.bottom, strip.text.x.top, strip.text.y, strip.text.y.left,
      strip.text.y.right, strip.switch.pad.grid, strip.switch.pad.wrap, ...,
      complete = FALSE, validate = TRUE)
```
]

---

---
layout: false
class: hide_logo

## 🙋‍♂️ Your Turn!

.pull-left[

.font120[在 RStudio控制台 中输入恰当的代码从而得到右边所示的图形：]

```r
# install.packages("palmerpenguins")
# install.packages("ggthemes")
library(ggplot2)
library(ggthemes)

palmerpenguins::penguins %>%
  ...
```
]

.pull-right[

]

---
layout: false
class: inverse, center, middle

# 3. `ggplot2` extensions and ...

---
class: hide_logo
background-image: url(imgs/logo-esquisse.png)
background-size: 5%
background-position: 5% 3%

### &emsp;&emsp;`esquisse`.font60[v1.1.2]

.pull-left.font110[

> This `esquisse` addin allows you to interactively
> explore your data by visualizing it with the `ggplot2`
> package. It allows you to draw bar plots, curves,
> scatter plots, histograms, boxplot and sf objects,
> then export the graph or retrieve the code to reproduce
> the graph.

```r
# install.packages("esquisse")

# RStudio Addins -> 'ggplot2' builder
esquisse::esquisser()
```

]

.pull-right[

]

---
class: hide_logo
background-image: url(imgs/logo-patchwork.png)
background-size: 5%
background-position: 5% 3%

### &emsp;&emsp;`patchwork`.font60[v1.1.3]

.pull-left.font110[

> `patchwork` expands the API to allow
> for arbitrarily complex composition of
> plots by, among others, providing
> mathematical operators for combining
> multiple plots.

```r
# install.packages("patchwork")
library(patchwork)

p <- ggplot(mtcars)

p1 <- p + geom_point(aes(mpg, disp))

p2 <- p + geom_boxplot(
 aes(gear, disp, group = gear))

p3 <- p + geom_smooth(aes(disp, qsec))

p4 <- p + geom_bar(aes(carb))
```

]

--

.pull-right[

```r
p1 + plot_spacer() + {
  p2 + p3 + plot_layout(ncol = 1)
} + plot_layout(nrow = 1,
                widths = c(1, 0.25, 1)) -
  p4 + plot_layout(ncol = 1) +
  plot_annotation(title = "Fancy plot!",
                  tag_levels = "A")
```

<img src="L02_Visualization_files/figure-html/patchwork-1.png" width="95%" style="display: block; margin: auto;" />
]

---
class: hide_logo
background-image: url(imgs/logo-gganimate.png)
background-size: 5%
background-position: 5% 3%

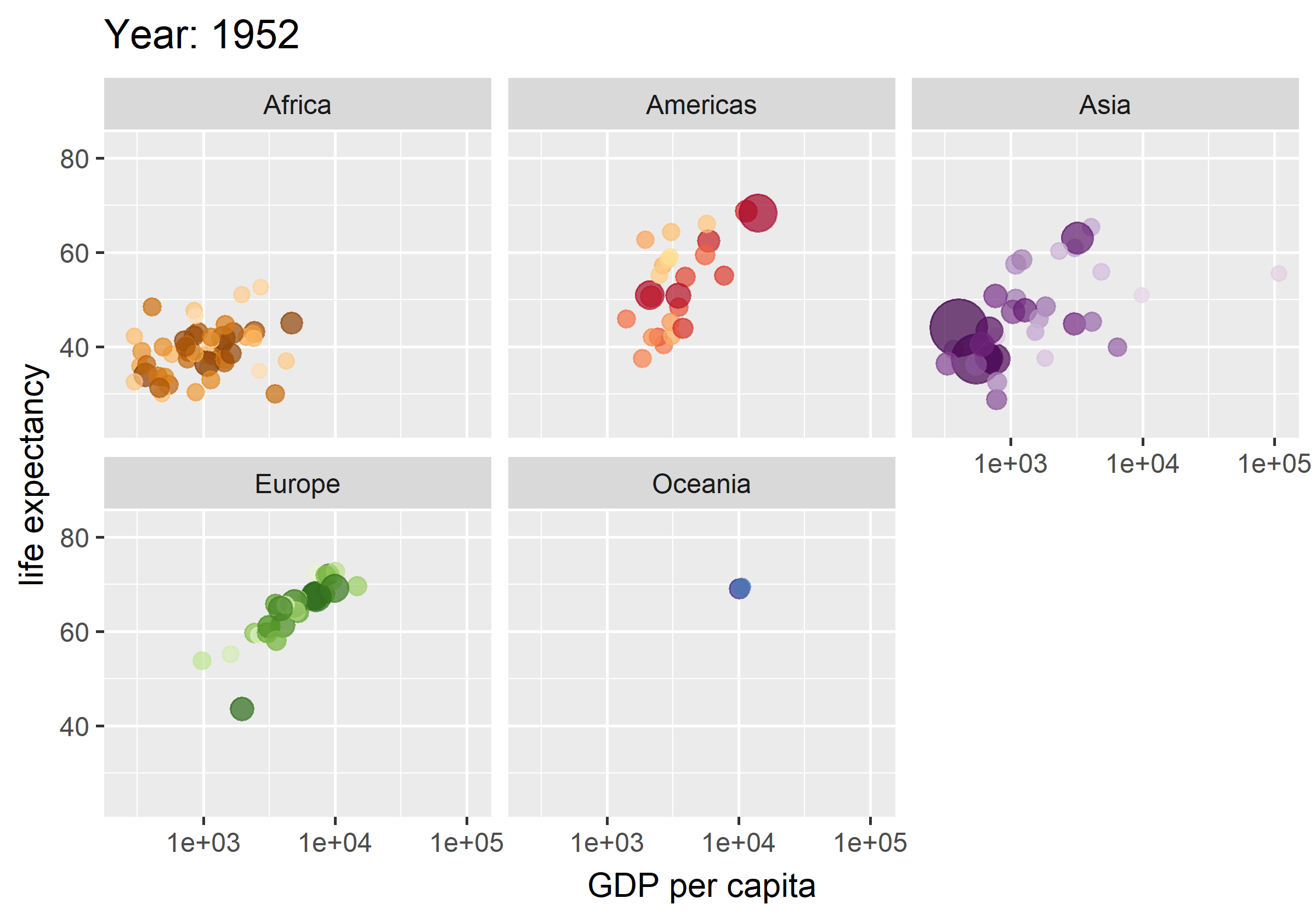

### &emsp;&emsp;`gganimate`.font60[v1.0.8]

.pull-left[

```r
# install.packages("gganimate")
# install.packages("gifski")
# install.packages("gapminder")

library(gganimate)
library(gapminder)

p <- ggplot(gapminder,
 aes(gdpPercap, lifeExp,
 size = pop,
 colour = country)) +
 geom_point(alpha = 0.7,
 show.legend = FALSE) +
 scale_colour_manual(
 values = country_colors
 ) +
 scale_size(range = c(2, 12)) +
 scale_x_log10() +
 facet_wrap(vars(continent))
```
]

--

.pull-right[

```r
# Here comes the gganimate specific bits
*p + labs(title = 'Year: {frame_time}',
         x = 'GDP per capita',
         y = 'life expectancy') +
* transition_time(year) +
* ease_aes('linear')
```

]

---
class: hide_logo
background-image: url(imgs/logo-plotly.png)
background-size: 5%
background-position: 5% 3%

### &emsp;&emsp;`plotly`.font60[v4.10.2]

.pull-left.font110[

> Create interactive web graphics from `ggplot2` graphs
> and/or a custom interface to the 'plotly.js'
> inspired by the _grammar of graphics_.

```r
# install.packages("plotly")
*library(plotly)

p <- gapminder %>%
 filter(year == 2007) %>%
 ggplot(aes(gdpPercap, lifeExp,
 size = pop,
 color = continent)) +
 geom_point() +
 scale_x_log10() +
 theme_bw()

*ggplotly(p)
```
]

.pull-right[

<div class="plotly html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-2509666ca3e79b8b7051" style="width:100%;height:65%;"></div>
<script type="application/json" data-for="htmlwidget-2509666ca3e79b8b7051">{"x":{"data":[{"x":[3.7940254450966644,3.6809906556268164,3.1587498285200959,4.0993301562976825,3.0853023521971163,2.6335398473202094,3.3100759930113757,2.8488148736349985,3.2314858313133699,2.9939420450679588,2.443344140046372,3.5602125331291146,3.1888582353745463,3.3185811659560813,3.7467261069384517,4.0847224390037145,2.8071083194109296,2.8393558343569567,4.120787226641542,2.8766506063906259,3.1230701584328973,2.9743524119826992,2.7628523540039867,3.1653183196828425,3.195714676047237,2.6175322269121151,4.0812572446605149,3.0190207459573766,2.8804419458658828,3.0181100381010961,3.2560322165243099,4.0396913096789095,3.5820832842930348,2.9157614843495785,3.6822408118633683,2.7921653017164396,3.3040545722906871,3.884802303432406,2.9360553118387509,3.2036950046605677,3.2336235137236495,2.9357796251727324,2.9666771427490164,3.9670637023386344,3.4153732150271123,3.6545115842375888,3.0443367476975203,2.9459459204926648,3.8508252467512323,3.0238202200422353,3.1042178448294138,2.6718291573166399],"y":[72.301000000000002,42.731000000000002,56.728000000000002,50.728000000000002,52.295000000000002,49.579999999999998,50.43,44.741,50.651000000000003,65.152000000000001,46.462000000000003,55.322000000000003,48.328000000000003,54.790999999999997,71.337999999999994,51.579000000000001,58.039999999999999,52.947000000000003,56.734999999999999,59.448,60.021999999999998,56.006999999999998,46.387999999999998,54.109999999999999,42.591999999999999,45.677999999999997,73.951999999999998,59.442999999999998,48.302999999999997,54.466999999999999,64.164000000000001,72.801000000000002,71.164000000000001,42.082000000000001,52.905999999999999,56.866999999999997,46.859000000000002,76.441999999999993,46.241999999999997,65.528000000000006,63.061999999999998,42.567999999999998,48.158999999999999,49.338999999999999,58.555999999999997,39.613,52.517000000000003,58.420000000000002,73.923000000000002,51.542000000000002,42.384,43.487000000000002],"text":["gdpPercap: 6223 lifeExp: 72.3 pop: 33333216 continent: Africa","gdpPercap: 4797 lifeExp: 42.7 pop: 12420476 continent: Africa","gdpPercap: 1441 lifeExp: 56.7 pop: 8078314 continent: Africa","gdpPercap: 12570 lifeExp: 50.7 pop: 1639131 continent: Africa","gdpPercap: 1217 lifeExp: 52.3 pop: 14326203 continent: Africa","gdpPercap: 430 lifeExp: 49.6 pop: 8390505 continent: Africa","gdpPercap: 2042 lifeExp: 50.4 pop: 17696293 continent: Africa","gdpPercap: 706 lifeExp: 44.7 pop: 4369038 continent: Africa","gdpPercap: 1704 lifeExp: 50.7 pop: 10238807 continent: Africa","gdpPercap: 986 lifeExp: 65.2 pop: 710960 continent: Africa","gdpPercap: 278 lifeExp: 46.5 pop: 64606759 continent: Africa","gdpPercap: 3633 lifeExp: 55.3 pop: 3800610 continent: Africa","gdpPercap: 1545 lifeExp: 48.3 pop: 18013409 continent: Africa","gdpPercap: 2082 lifeExp: 54.8 pop: 496374 continent: Africa","gdpPercap: 5581 lifeExp: 71.3 pop: 80264543 continent: Africa","gdpPercap: 12154 lifeExp: 51.6 pop: 551201 continent: Africa","gdpPercap: 641 lifeExp: 58.0 pop: 4906585 continent: Africa","gdpPercap: 691 lifeExp: 52.9 pop: 76511887 continent: Africa","gdpPercap: 13206 lifeExp: 56.7 pop: 1454867 continent: Africa","gdpPercap: 753 lifeExp: 59.4 pop: 1688359 continent: Africa","gdpPercap: 1328 lifeExp: 60.0 pop: 22873338 continent: Africa","gdpPercap: 943 lifeExp: 56.0 pop: 9947814 continent: Africa","gdpPercap: 579 lifeExp: 46.4 pop: 1472041 continent: Africa","gdpPercap: 1463 lifeExp: 54.1 pop: 35610177 continent: Africa","gdpPercap: 1569 lifeExp: 42.6 pop: 2012649 continent: Africa","gdpPercap: 415 lifeExp: 45.7 pop: 3193942 continent: Africa","gdpPercap: 12057 lifeExp: 74.0 pop: 6036914 continent: Africa","gdpPercap: 1045 lifeExp: 59.4 pop: 19167654 continent: Africa","gdpPercap: 759 lifeExp: 48.3 pop: 13327079 continent: Africa","gdpPercap: 1043 lifeExp: 54.5 pop: 12031795 continent: Africa","gdpPercap: 1803 lifeExp: 64.2 pop: 3270065 continent: Africa","gdpPercap: 10957 lifeExp: 72.8 pop: 1250882 continent: Africa","gdpPercap: 3820 lifeExp: 71.2 pop: 33757175 continent: Africa","gdpPercap: 824 lifeExp: 42.1 pop: 19951656 continent: Africa","gdpPercap: 4811 lifeExp: 52.9 pop: 2055080 continent: Africa","gdpPercap: 620 lifeExp: 56.9 pop: 12894865 continent: Africa","gdpPercap: 2014 lifeExp: 46.9 pop: 135031164 continent: Africa","gdpPercap: 7670 lifeExp: 76.4 pop: 798094 continent: Africa","gdpPercap: 863 lifeExp: 46.2 pop: 8860588 continent: Africa","gdpPercap: 1598 lifeExp: 65.5 pop: 199579 continent: Africa","gdpPercap: 1712 lifeExp: 63.1 pop: 12267493 continent: Africa","gdpPercap: 863 lifeExp: 42.6 pop: 6144562 continent: Africa","gdpPercap: 926 lifeExp: 48.2 pop: 9118773 continent: Africa","gdpPercap: 9270 lifeExp: 49.3 pop: 43997828 continent: Africa","gdpPercap: 2602 lifeExp: 58.6 pop: 42292929 continent: Africa","gdpPercap: 4513 lifeExp: 39.6 pop: 1133066 continent: Africa","gdpPercap: 1107 lifeExp: 52.5 pop: 38139640 continent: Africa","gdpPercap: 883 lifeExp: 58.4 pop: 5701579 continent: Africa","gdpPercap: 7093 lifeExp: 73.9 pop: 10276158 continent: Africa","gdpPercap: 1056 lifeExp: 51.5 pop: 29170398 continent: Africa","gdpPercap: 1271 lifeExp: 42.4 pop: 11746035 continent: Africa","gdpPercap: 470 lifeExp: 43.5 pop: 12311143 continent: Africa"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(248,118,109,1)","opacity":1,"size":[6.7752717325492302,5.5989004118630001,5.2403533070783466,4.4039576839973833,5.7356199392207996,5.2690143958143745,5.9564773609874049,4.8422259478740974,5.4285263116604412,4.1516985016395616,7.9562662998770968,4.7671332830722601,5.9761166381701099,4.0630571938388131,8.4363687173296391,4.0881362755000454,4.9086539137274148,8.32592567062337,4.3626259687113649,4.4145446751277628,6.2577023306009796,5.4044519713261234,4.366601197011196,6.8764961358924266,4.4803007102230001,4.6801077545067349,5.0369392016926247,6.0461636385333,5.6651779774839266,5.5697344023561026,4.6914832316617332,4.3131500431206629,6.7943767241052386,6.0925324617448933,4.4884533308975465,5.6338762963755968,9.8227139332733113,4.1821590023924538,5.3111594952501031,3.7795275590551185,5.5874769596414557,5.0484803839022625,5.3338208539114369,7.2238082937782924,7.156106546896897,4.282361176813005,6.9852002740989851,5.0002880392083817,5.4315910179617095,6.5807690784340016,5.5479846257867891,5.5907437114111733],"symbol":"circle","line":{"width":1.8897637795275593,"color":"rgba(248,118,109,1)"}},"hoveron":"points","name":"Africa","legendgroup":"Africa","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[4.1065097720176862,3.5823062593168782,3.957406173408569,4.5601366924251883,4.1196398143870931,3.8455061110473117,3.9843049975871763,3.9517309708016475,3.7799840633073747,3.8371629195761865,3.7580298117512663,3.7148366998460376,3.0797733480287044,3.550024106620056,3.8645633037284566,4.0783688975107708,3.4392254438054342,3.991632953509189,3.6204315729333021,3.8697540590018766,4.2862028478952521,4.2554777630339444,4.6329798832790043,4.0257752637018411,4.0575065679833457],"y":[75.319999999999993,65.554000000000002,72.390000000000001,80.653000000000006,78.552999999999997,72.888999999999996,78.781999999999996,78.272999999999996,72.234999999999999,74.994,71.878,70.259,60.915999999999997,70.197999999999993,72.566999999999993,76.194999999999993,72.899000000000001,75.537000000000006,71.751999999999995,71.421000000000006,78.745999999999995,69.819000000000003,78.242000000000004,76.384,73.747],"text":["gdpPercap: 12779 lifeExp: 75.3 pop: 40301927 continent: Americas","gdpPercap: 3822 lifeExp: 65.6 pop: 9119152 continent: Americas","gdpPercap: 9066 lifeExp: 72.4 pop: 190010647 continent: Americas","gdpPercap: 36319 lifeExp: 80.7 pop: 33390141 continent: Americas","gdpPercap: 13172 lifeExp: 78.6 pop: 16284741 continent: Americas","gdpPercap: 7007 lifeExp: 72.9 pop: 44227550 continent: Americas","gdpPercap: 9645 lifeExp: 78.8 pop: 4133884 continent: Americas","gdpPercap: 8948 lifeExp: 78.3 pop: 11416987 continent: Americas","gdpPercap: 6025 lifeExp: 72.2 pop: 9319622 continent: Americas","gdpPercap: 6873 lifeExp: 75.0 pop: 13755680 continent: Americas","gdpPercap: 5728 lifeExp: 71.9 pop: 6939688 continent: Americas","gdpPercap: 5186 lifeExp: 70.3 pop: 12572928 continent: Americas","gdpPercap: 1202 lifeExp: 60.9 pop: 8502814 continent: Americas","gdpPercap: 3548 lifeExp: 70.2 pop: 7483763 continent: Americas","gdpPercap: 7321 lifeExp: 72.6 pop: 2780132 continent: Americas","gdpPercap: 11978 lifeExp: 76.2 pop: 108700891 continent: Americas","gdpPercap: 2749 lifeExp: 72.9 pop: 5675356 continent: Americas","gdpPercap: 9809 lifeExp: 75.5 pop: 3242173 continent: Americas","gdpPercap: 4173 lifeExp: 71.8 pop: 6667147 continent: Americas","gdpPercap: 7409 lifeExp: 71.4 pop: 28674757 continent: Americas","gdpPercap: 19329 lifeExp: 78.7 pop: 3942491 continent: Americas","gdpPercap: 18009 lifeExp: 69.8 pop: 1056608 continent: Americas","gdpPercap: 42952 lifeExp: 78.2 pop: 301139947 continent: Americas","gdpPercap: 10611 lifeExp: 76.4 pop: 3447496 continent: Americas","gdpPercap: 11416 lifeExp: 73.7 pop: 26084662 continent: Americas"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(163,165,0,1)","opacity":1,"size":[7.0752836928954501,5.333853876564663,10.949722028706249,6.7778440362522812,5.8668180179899734,7.2328291141492445,4.8118234074533222,5.5226039735491259,5.3512237886724172,5.69571313317988,5.1306777542305024,5.6102133034773436,5.2791910995855069,5.1841532973733377,4.6155666029278022,9.2006306129298405,4.9973754404969783,4.687331723294788,5.1030785274449162,6.5567034863678497,4.7864012116365817,4.2613288143832744,12.807919245623044,4.7174623155002786,6.4273871341173354],"symbol":"circle","line":{"width":1.8897637795275593,"color":"rgba(163,165,0,1)"}},"hoveron":"points","name":"Americas","legendgroup":"Americas","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[2.9888176454912858,4.4741586701859664,3.1434063610570009,3.2339547372751722,3.6954041667466049,4.5990636726886356,3.3895577312128795,3.5490831898821575,4.0646718823630357,3.6504106831196688,4.406936435530084,4.5004569709846161,3.6550866594992835,3.2022336270366805,4.3682522837381041,4.6749253140699576,4.0195756382230385,4.095227107013149,3.4907690059237622,2.9749719942980688,3.0379679438446519,4.3486201061894318,3.4159656754035375,3.5038561648270914,4.3355548175826542,4.6734188707962172,3.5988009435983197,3.6216485631534296,4.4581583777244909,3.8726454573379581,3.3876703191654678,3.4807755960325997,3.3580814739680283],"y":[43.828000000000003,75.635000000000005,64.061999999999998,59.722999999999999,72.960999999999999,82.207999999999998,64.697999999999993,70.650000000000006,70.963999999999999,59.545000000000002,80.745000000000005,82.602999999999994,72.534999999999997,67.296999999999997,78.623000000000005,77.587999999999994,71.992999999999995,74.241,66.802999999999997,62.069000000000003,63.784999999999997,75.640000000000001,65.483000000000004,71.688000000000002,72.777000000000001,79.971999999999994,72.396000000000001,74.143000000000001,78.400000000000006,70.616,74.248999999999995,73.421999999999997,62.698],"text":["gdpPercap: 975 lifeExp: 43.8 pop: 31889923 continent: Asia","gdpPercap: 29796 lifeExp: 75.6 pop: 708573 continent: Asia","gdpPercap: 1391 lifeExp: 64.1 pop: 150448339 continent: Asia","gdpPercap: 1714 lifeExp: 59.7 pop: 14131858 continent: Asia","gdpPercap: 4959 lifeExp: 73.0 pop: 1318683096 continent: Asia","gdpPercap: 39725 lifeExp: 82.2 pop: 6980412 continent: Asia","gdpPercap: 2452 lifeExp: 64.7 pop: 1110396331 continent: Asia","gdpPercap: 3541 lifeExp: 70.7 pop: 223547000 continent: Asia","gdpPercap: 11606 lifeExp: 71.0 pop: 69453570 continent: Asia","gdpPercap: 4471 lifeExp: 59.5 pop: 27499638 continent: Asia","gdpPercap: 25523 lifeExp: 80.7 pop: 6426679 continent: Asia","gdpPercap: 31656 lifeExp: 82.6 pop: 127467972 continent: Asia","gdpPercap: 4519 lifeExp: 72.5 pop: 6053193 continent: Asia","gdpPercap: 1593 lifeExp: 67.3 pop: 23301725 continent: Asia","gdpPercap: 23348 lifeExp: 78.6 pop: 49044790 continent: Asia","gdpPercap: 47307 lifeExp: 77.6 pop: 2505559 continent: Asia","gdpPercap: 10461 lifeExp: 72.0 pop: 3921278 continent: Asia","gdpPercap: 12452 lifeExp: 74.2 pop: 24821286 continent: Asia","gdpPercap: 3096 lifeExp: 66.8 pop: 2874127 continent: Asia","gdpPercap: 944 lifeExp: 62.1 pop: 47761980 continent: Asia","gdpPercap: 1091 lifeExp: 63.8 pop: 28901790 continent: Asia","gdpPercap: 22316 lifeExp: 75.6 pop: 3204897 continent: Asia","gdpPercap: 2606 lifeExp: 65.5 pop: 169270617 continent: Asia","gdpPercap: 3190 lifeExp: 71.7 pop: 91077287 continent: Asia","gdpPercap: 21655 lifeExp: 72.8 pop: 27601038 continent: Asia","gdpPercap: 47143 lifeExp: 80.0 pop: 4553009 continent: Asia","gdpPercap: 3970 lifeExp: 72.4 pop: 20378239 continent: Asia","gdpPercap: 4185 lifeExp: 74.1 pop: 19314747 continent: Asia","gdpPercap: 28718 lifeExp: 78.4 pop: 23174294 continent: Asia","gdpPercap: 7458 lifeExp: 70.6 pop: 65068149 continent: Asia","gdpPercap: 2442 lifeExp: 74.2 pop: 85262356 continent: Asia","gdpPercap: 3025 lifeExp: 73.4 pop: 4018332 continent: Asia","gdpPercap: 2281 lifeExp: 62.7 pop: 22211743 continent: Asia"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,191,125,1)","opacity":1,"size":[6.7092983513552849,4.1508288847181953,10.158865608179935,5.7221180107506537,22.677165354330711,5.1347534580541501,21.120368095307143,11.557396830375804,8.1105713155374861,6.4987952406877376,5.0782402616746616,9.6507758736364799,5.0386912985713304,6.2810035011451255,7.4168446506103951,4.569838394810894,4.7835439230220365,6.3619616591074761,4.6306565167244802,7.368763875897594,6.5677527377566554,4.6817536552960464,10.5466615830696,8.7408659686259185,6.5038406176847667,4.8654178527954128,6.1173758740791646,6.0549352830716545,6.2740949140912097,7.9711999339905422,8.5795132943757064,4.7965509761407246,6.2212794811128056],"symbol":"circle","line":{"width":1.8897637795275593,"color":"rgba(0,191,125,1)"}},"hoveron":"points","name":"Asia","legendgroup":"Asia","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[3.7735692087621691,4.5578258006221848,4.5275345915133105,3.8719404594797928,4.0286034909483179,4.1649242825131747,4.3585688446278343,4.5475091108168488,4.5212307459814749,4.4838726922507623,4.5074561155365247,4.4399388911990529,4.2554882582210949,4.5584780356339154,4.6093381996914395,4.4559059795027833,3.9663246195778949,4.5658234281049346,4.6933504280025318,4.1872364943512697,4.3119582019159575,4.0337644468812863,3.9906289409349966,4.271337680163577,4.4110850532178922,4.4597100052953031,4.5296837260525233,4.574105601810623,3.927281872119107,4.5211807429313629],"y":[76.423000000000002,79.828999999999994,79.441000000000003,74.852000000000004,73.004999999999995,75.748000000000005,76.486000000000004,78.331999999999994,79.313000000000002,80.656999999999996,79.406000000000006,79.483000000000004,73.337999999999994,81.757000000000005,78.885000000000005,80.546000000000006,74.543000000000006,79.762,80.195999999999998,75.563000000000002,78.097999999999999,72.475999999999999,74.001999999999995,74.662999999999997,77.926000000000002,80.941000000000003,80.884,81.700999999999993,71.777000000000001,79.424999999999997],"text":["gdpPercap: 5937 lifeExp: 76.4 pop: 3600523 continent: Europe","gdpPercap: 36126 lifeExp: 79.8 pop: 8199783 continent: Europe","gdpPercap: 33693 lifeExp: 79.4 pop: 10392226 continent: Europe","gdpPercap: 7446 lifeExp: 74.9 pop: 4552198 continent: Europe","gdpPercap: 10681 lifeExp: 73.0 pop: 7322858 continent: Europe","gdpPercap: 14619 lifeExp: 75.7 pop: 4493312 continent: Europe","gdpPercap: 22833 lifeExp: 76.5 pop: 10228744 continent: Europe","gdpPercap: 35278 lifeExp: 78.3 pop: 5468120 continent: Europe","gdpPercap: 33207 lifeExp: 79.3 pop: 5238460 continent: Europe","gdpPercap: 30470 lifeExp: 80.7 pop: 61083916 continent: Europe","gdpPercap: 32170 lifeExp: 79.4 pop: 82400996 continent: Europe","gdpPercap: 27538 lifeExp: 79.5 pop: 10706290 continent: Europe","gdpPercap: 18009 lifeExp: 73.3 pop: 9956108 continent: Europe","gdpPercap: 36181 lifeExp: 81.8 pop: 301931 continent: Europe","gdpPercap: 40676 lifeExp: 78.9 pop: 4109086 continent: Europe","gdpPercap: 28570 lifeExp: 80.5 pop: 58147733 continent: Europe","gdpPercap: 9254 lifeExp: 74.5 pop: 684736 continent: Europe","gdpPercap: 36798 lifeExp: 79.8 pop: 16570613 continent: Europe","gdpPercap: 49357 lifeExp: 80.2 pop: 4627926 continent: Europe","gdpPercap: 15390 lifeExp: 75.6 pop: 38518241 continent: Europe","gdpPercap: 20510 lifeExp: 78.1 pop: 10642836 continent: Europe","gdpPercap: 10808 lifeExp: 72.5 pop: 22276056 continent: Europe","gdpPercap: 9787 lifeExp: 74.0 pop: 10150265 continent: Europe","gdpPercap: 18678 lifeExp: 74.7 pop: 5447502 continent: Europe","gdpPercap: 25768 lifeExp: 77.9 pop: 2009245 continent: Europe","gdpPercap: 28821 lifeExp: 80.9 pop: 40448191 continent: Europe","gdpPercap: 33860 lifeExp: 80.9 pop: 9031088 continent: Europe","gdpPercap: 37506 lifeExp: 81.7 pop: 7554661 continent: Europe","gdpPercap: 8458 lifeExp: 71.8 pop: 71158647 continent: Europe","gdpPercap: 33203 lifeExp: 79.4 pop: 60776238 continent: Europe"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,176,246,1)","opacity":1,"size":[4.7393036097654502,5.2515712457990968,5.4410784978691735,4.8653167028921844,5.1685528258485842,4.8579469438752234,5.4276996527368331,4.9741078643628294,4.9477814048195228,7.8404337662196868,8.498091237446733,5.4664828069929365,5.4051430840065446,3.9460291298414996,4.8085649745634003,7.7413040551619607,4.1420303205279438,5.8852844160763711,4.8747213942514058,7.0011551525914504,5.4613810121458615,6.2248439161044908,5.421238450332476,4.9717681273532666,4.4796425578879777,7.0812884751230953,5.3261618194654057,5.1909724557450065,8.1635636391520627,7.8301599085784517],"symbol":"circle","line":{"width":1.8897637795275593,"color":"rgba(0,176,246,1)"}},"hoveron":"points","name":"Europe","legendgroup":"Europe","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[4.5370047214526892,4.4011421122881123],"y":[81.234999999999999,80.203999999999994],"text":["gdpPercap: 34435 lifeExp: 81.2 pop: 20434176 continent: Oceania","gdpPercap: 25185 lifeExp: 80.2 pop: 4115771 continent: Oceania"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(231,107,243,1)","opacity":1,"size":[6.1206139909462598,4.8094443919586789],"symbol":"circle","line":{"width":1.8897637795275593,"color":"rgba(231,107,243,1)"}},"hoveron":"points","name":"Oceania","legendgroup":"Oceania","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":23.305936073059364,"r":7.3059360730593621,"b":37.260273972602747,"l":37.260273972602747},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.611872146118724},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[2.330843825648564,4.8058507424003398],"tickmode":"array","ticktext":["300","1000","3000","10000","30000"],"tickvals":[2.4771212547196626,3,3.4771212547196626,4,4.4771212547196626],"categoryorder":"array","categoryarray":["300","1000","3000","10000","30000"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.6529680365296811,"tickwidth":0.66417600664176002,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.68949771689498},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176002,"zeroline":false,"anchor":"y","title":{"text":"gdpPercap","font":{"color":"rgba(0,0,0,1)","family":"","size":14.611872146118724}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[37.463499999999996,84.752499999999998],"tickmode":"array","ticktext":["40","50","60","70","80"],"tickvals":[40,50,60,70,80],"categoryorder":"array","categoryarray":["40","50","60","70","80"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.6529680365296811,"tickwidth":0.66417600664176002,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.68949771689498},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176002,"zeroline":false,"anchor":"x","title":{"text":"lifeExp","font":{"color":"rgba(0,0,0,1)","family":"","size":14.611872146118724}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.66417600664176002,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.8897637795275593,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.68949771689498},"title":{"text":"pop continent","font":{"color":"rgba(0,0,0,1)","family":"","size":14.611872146118724}}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"c2484bd554d1":{"x":{},"y":{},"size":{},"colour":{},"type":"scatter"}},"cur_data":"c2484bd554d1","visdat":{"c2484bd554d1":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---
class: hide_logo
background-image: url(imgs/logo-plotnine.webp)
background-size: 5%
background-position: 5% 3%

### &emsp;&emsp;`plotnine`: A Grammar of Graphics for Python

---
class: inverse, center, middle

# 课后复习与作业

---
class: middle

.font130[
🕐 根据课程讲义的打印稿，在 📑 _R Script_ 中键入并完成全部代码的运行

🕑 请复习 / 进一步学习 📖 .bold[[{{_R for Data Science, 2e_}}](https://r4ds.hadley.nz/)] * 一书关于数据可视化的第2章（Data visualization）、第10章（Layers）和__第12章（Communication）__以及关于工作流的第3、5、7、9章）

🕒 下载（打印）📰 .bold[[{{ggplot2-cheatsheet}}](docs/ggplot2-cheatsheet.pdf)] 并浏览之

🕓 登录浏览 🖼 .bold[[{{The R Graph Gallery}}](https://www.r-graph-gallery.com/index.html)]

🕔 登录浏览 📦 .bold[[{{ggplot2 extentions}}](https://exts.ggplot2.tidyverse.org/gallery/)]，进一步了解 `ggplot2` 包的“生态圈”

🕕 _**进阶内容**_：R 对中文字体的支持不够理想，可参考 📝 .bold[[{{_RJournal_的文章}}](https://journal.r-project.org/archive/2015-1/qiu.pdf)]以及帖子 .bold[[{{showtext}}](https://cosx.org/2014/01/showtext-interesting-fonts-and-graphs)] 中提到的解决方案和有趣示例

]

.footnote.red[
\* 若英文看起来实在吃力 😵， 这本书的第一版有中文翻译版，请同学们自行学习对应章节。我个人建议同学们（等网上商城打折时）购买实体书，放在案头作学习参考。]

---
class: middle

.font120[
🕐 根据 L2 课程讲义的打印稿，在 📑 _R Script_ 中键入并完成全部代码的运行
]

- .bold[打开新的 R script 文件]
  - .kbd[`Ctrl+Shift+N`] 打开 -> .kbd[`Ctrl+S`] 存盘为“_L02_coding_practice.R_”
  - 注：文件保存路径和文件名最好为英文，中间不要有空格

--

- .bold[输入与运行代码]
  - 长代码手动断行，最好不要超过80个字符
  - 灵活使用快捷键，如 .kbd[`F1`]（帮助）、.kbd[`Tab`]（代码提示与自动补全）、.kbd[`Ctrl+A`]（选中全部代码） -> .kbd[`Ctrl+Shift+A`]（代码重新格式化）等
  - .kbd[`Ctrl+Enter`] 运行光标所在行或选中代码（.kbd[`Ctrl+Alt+R`] 运行全部代码，.kbd[`Ctrl+Shift+P`] 重新运行代码，.kbd[`Ctrl+Alt+P`] 运行光标前的代码）

- .bold[注释]
  - 以 # 作为注释开始标记，如说明性文字、区分不同代码块（.kbd[`Ctrl+Shift+R`]）
  - 最后加入一段注释说明，简单说说使用 ggplot2包 的体会

--

- .bold[提交代码]

- 可结队编写代码，共同署名，分别提交，**但注意控制雷同比例**
  - 2023年9月28日22:00前通过 [{{坚果云链接}}](https://send2me.cn/mhGkgKHx/S_mh3x3-oCKUzg) 直接提交代码文档

---
class: center middle
background-image: url(imgs/xaringan.png)
background-size: 12%
background-position: 50% 40%

<hr color='#f00' size='2px' width='80%'>

.Large.red[_**本网页版讲义的制作由 R 包 [{{`xaringan`}}](https://github.com/yihui/xaringan) 赋能！**_]
