.pull-left.font120.bold.center[

_A Grammar of Data Manipulation_

]

--

.pull-right.font150.gray[

1. 样本处理

2. 变量处理

3. 汇总

4. 分组和行式处理

5. 用 `%>%` 连接多个操作

6. .bold.black[合并多个数据集]

7. 操作数据库和 `data.table`

]

---

```r
library(tidyverse)
library(nycflights13)

data(package = "nycflights13")
# 包含airlines、airports、flights、planes、weather等5个数据集
```

```r
flights  # just print() it
```

```
#> # A tibble: 336,776 × 19
#> year month day dep_time sched_dep_time dep_delay arr_time sched_arr_time arr_delay
#> <int> <int> <int> <int> <int> <dbl> <int> <int> <dbl>
#> 1 2013 1 1 517 515 2 830 819 11
#> 2 2013 1 1 533 529 4 850 830 20
#> 3 2013 1 1 542 540 2 923 850 33
#> # ℹ 336,773 more rows
#> # ℹ 10 more variables: carrier <chr>, flight <int>, tailnum <chr>, origin <chr>,
#> # dest <chr>, air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>,
#> # time_hour <dttm>
```
--

```r
?flights  # 打开flights数据集的帮助文档以进一步了解数据集，如变量的定义
```

---

```r
glimpse(flights)  # 数据一瞥
```

```
#> Rows: 336,776
#> Columns: 19
#> $ year <int> 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013,…
#> $ month <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
#> $ day <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
#> $ dep_time <int> 517, 533, 542, 544, 554, 554, 555, 557, 557, 558, 558, 558, 558, …
#> $ sched_dep_time <int> 515, 529, 540, 545, 600, 558, 600, 600, 600, 600, 600, 600, 600, …
#> $ dep_delay <dbl> 2, 4, 2, -1, -6, -4, -5, -3, -3, -2, -2, -2, -2, -2, -1, 0, -1, 0…
#> $ arr_time <int> 830, 850, 923, 1004, 812, 740, 913, 709, 838, 753, 849, 853, 924,…
#> $ sched_arr_time <int> 819, 830, 850, 1022, 837, 728, 854, 723, 846, 745, 851, 856, 917,…
#> $ arr_delay <dbl> 11, 20, 33, -18, -25, 12, 19, -14, -8, 8, -2, -3, 7, -14, 31, -4,…
#> $ carrier <chr> "UA", "UA", "AA", "B6", "DL", "UA", "B6", "EV", "B6", "AA", "B6",…
#> $ flight <int> 1545, 1714, 1141, 725, 461, 1696, 507, 5708, 79, 301, 49, 71, 194…
#> $ tailnum <chr> "N14228", "N24211", "N619AA", "N804JB", "N668DN", "N39463", "N516…
#> $ origin <chr> "EWR", "LGA", "JFK", "JFK", "LGA", "EWR", "EWR", "LGA", "JFK", "L…
#> $ dest <chr> "IAH", "IAH", "MIA", "BQN", "ATL", "ORD", "FLL", "IAD", "MCO", "O…
#> $ air_time <dbl> 227, 227, 160, 183, 116, 150, 158, 53, 140, 138, 149, 158, 345, 3…
#> $ distance <dbl> 1400, 1416, 1089, 1576, 762, 719, 1065, 229, 944, 733, 1028, 1005…
#> $ hour <dbl> 5, 5, 5, 5, 6, 5, 6, 6, 6, 6, 6, 6, 6, 6, 6, 5, 6, 6, 6, 6, 6, 6,…
#> $ minute <dbl> 15, 29, 40, 45, 0, 58, 0, 0, 0, 0, 0, 0, 0, 0, 0, 59, 0, 0, 0, 0,…
#> $ time_hour <dttm> 2013-01-01 05:00:00, 2013-01-01 05:00:00, 2013-01-01 05:00:00, 2…
```
--

```r
View(flights)     # 在 RStudio 数据浏览器中打开数据集
# tibble::view() 调用 utils::View() 并不可见地返回原数据集，便于 %>% 操作，但速度好像慢很多
```

---
layout: false
class: inverse, center, middle

# 6. 合并数据集

.font150[(combine tables)]

---

.pull-left[

```r
airlines
```

```
#> # A tibble: 16 × 2
#> carrier name
#> <chr> <chr>
#> 1 9E Endeavor Air Inc.
#> 2 AA American Airlines Inc.
#> 3 AS Alaska Airlines Inc.
#> # ℹ 13 more rows
```

```r
planes
```

```
#> # A tibble: 3,322 × 9
#> tailnum year type manufacturer model
#> <chr> <int> <chr> <chr> <chr>
#> 1 N10156 2004 Fixed win… EMBRAER EMB-…
#> 2 N102UW 1998 Fixed win… AIRBUS INDU… A320…
#> 3 N103US 1999 Fixed win… AIRBUS INDU… A320…
#> # ℹ 3,319 more rows
#> # ℹ 4 more variables: engines <int>,
#> # seats <int>, speed <int>, engine <chr>
```

]

.pull-right[

```r
airports
```

```
#> # A tibble: 1,458 × 8
#> faa name lat lon alt tz dst
#> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <chr>
#> 1 04G Lansdo… 41.1 -80.6 1044 -5 A
#> 2 06A Moton … 32.5 -85.7 264 -6 A
#> 3 06C Schaum… 42.0 -88.1 801 -6 A
#> # ℹ 1,455 more rows
#> # ℹ 1 more variable: tzone <chr>
```

```r
weather
```

```
#> # A tibble: 26,115 × 15
#> origin year month day hour temp dewp
#> <chr> <int> <int> <int> <int> <dbl> <dbl>
#> 1 EWR 2013 1 1 1 39.0 26.1
#> 2 EWR 2013 1 1 2 39.0 27.0
#> 3 EWR 2013 1 1 3 39.0 28.0
#> # ℹ 26,112 more rows
#> # ℹ 8 more variables: humid <dbl>,
#> # wind_dir <dbl>, wind_speed <dbl>,
#> # wind_gust <dbl>, precip <dbl>,
#> # pressure <dbl>, visib <dbl>,
#> # time_hour <dttm>
```

]

---
layout: true

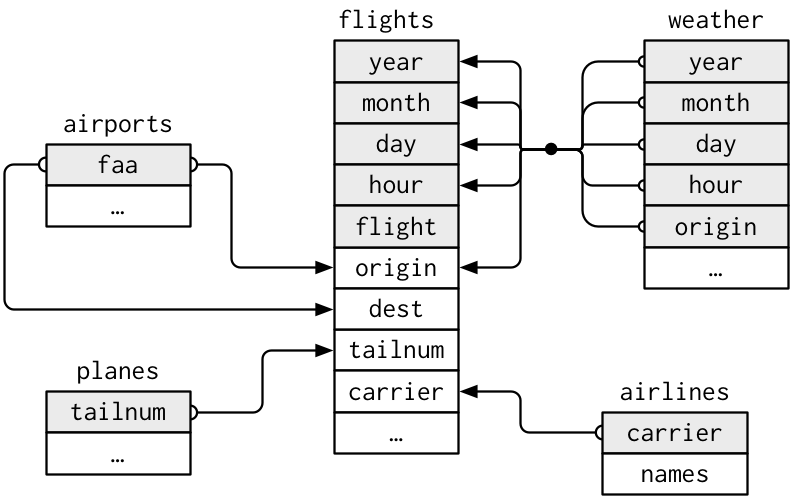

### >> 键（keys）

---

.full-width[.content-box-blue.bold.font100[主键（primary key）：指的是数据表中一个变量（列）或多个变量的组合，其值能唯一地标识表中的每一行。主键主要用来与其他表的外键关联，以及本表的修改与删除。]]
--

```r
planes %>% count(tailnum) %>%  filter(n > 1)
```

```
#> # A tibble: 0 × 2
#> # ℹ 2 variables: tailnum <chr>, n <int>
```

```r
weather %>%
  count(year, month, day, hour, origin) %>% filter(n > 1)
```

```
#> # A tibble: 3 × 6
#> year month day hour origin n
#> <int> <int> <int> <int> <chr> <int>
#> 1 2013 11 3 1 EWR 2
#> 2 2013 11 3 1 JFK 2
#> 3 2013 11 3 1 LGA 2
```

```r
weather <- weather %>% distinct(year, month, day, hour, origin, .keep_all = TRUE) # 修正之
```

.full-width[.content-box-blue.bold.font100[外键（foreign key）：对应于另一数据表主键的一个或多个变量。]]

---

---
layout: true

### >> 合并式连接（mutating joins）

---

.full-width[.content-box-blue.bold.font110[`*_join(x, y, by = NULL, copy = FALSE, suffix = c(".x", ".y"), ...)`]]

```r
flights %>%
  select(year:day, hour, tailnum, carrier) %>%
  left_join(airlines)  # 以同名变量为合并键，增加变量 name（航空公司全名）
```

```
#> Joining with `by = join_by(carrier)`
```

```
#> # A tibble: 336,776 × 7
#> year month day hour tailnum carrier name
#> <int> <int> <int> <dbl> <chr> <chr> <chr>
#> 1 2013 1 1 5 N14228 UA United Air Lines Inc.
#> 2 2013 1 1 5 N24211 UA United Air Lines Inc.
#> 3 2013 1 1 5 N619AA AA American Airlines Inc.
#> # ℹ 336,773 more rows
```

```r
flights %>%
  select(year:day, hour, tailnum, carrier) %>%
* mutate(name = airlines$name[match(carrier, airlines$carrier)]) # 殊途同归，但容易理解吗？
```

---

.pull-left[

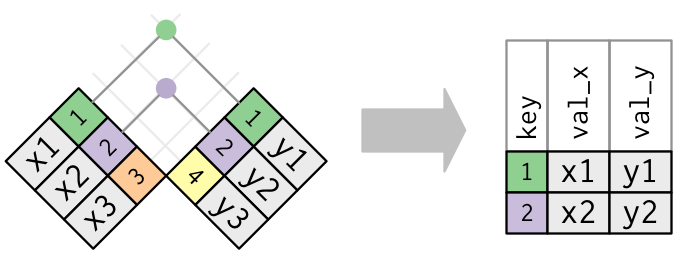

.full-width.content-box-blue.bold.font120[Inner joins]

]
--

.pull-right[

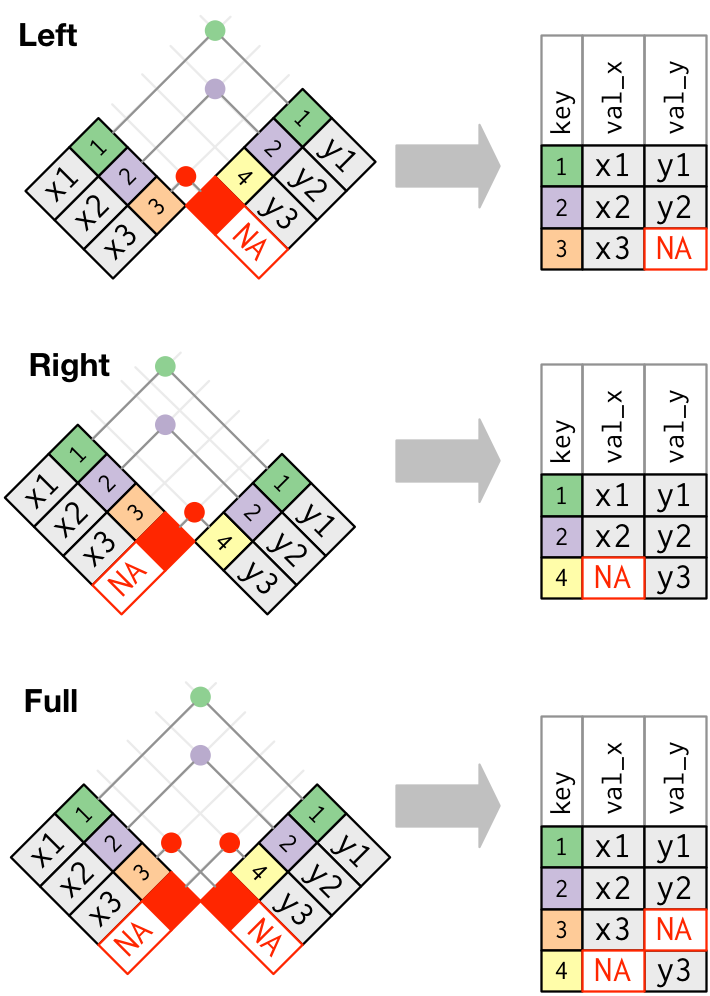

.full-width.content-box-blue.bold.font120[Outer joins]

]

---

.full-width[.content-box-blue.bold.font120.note[用 `by` 参数设定连接所用的键变量]]

.code95[

```r
# 默认时（即`by = NULL`）使用两个数据集中同名的全部变量，即natural join
# 此时会显示提示信息“Joining, by = join_by(以,分隔的全部同名变量)”
flights %>%
  left_join(weather)

# 显性设定`by = join_by(以,分隔的键变量)` 或者 `by = 键变量字符向量`
flights %>%
    left_join(weather,
              by = join_by(year, month, day, origin, hour))

# 两个数据集的变量不同名时，则显性设定如
# `by = join_by(xv1 == yv1, xv2 == yv2)` 或者 `by = 命名字符变量向量`
flights %>%
  left_join(airports, by = join_by(dest == faa)) # by = c("dest" = "faa")

# dplyr v1.1.0 `by` 参数设定的新语法 `by = join_by(...)` 更加灵活，支持非等值
# 连接（non-equi joins）（具体见后）
```

]

---

.full-width[.content-box-blue.bold.font120.note[合并式连接函数`*_join()`的参数 `relationship` .red.font80[1,3]]]

.pull-left.font110[

- .code110.bold[`"one-to-one"`]
  [[见前]](#92)

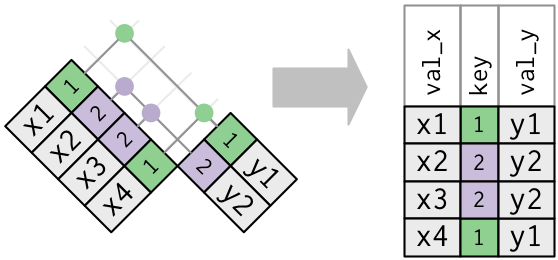

- .code110[`"one-to-many"` / `"many-to-one"`]

]

.pull-right.font110[

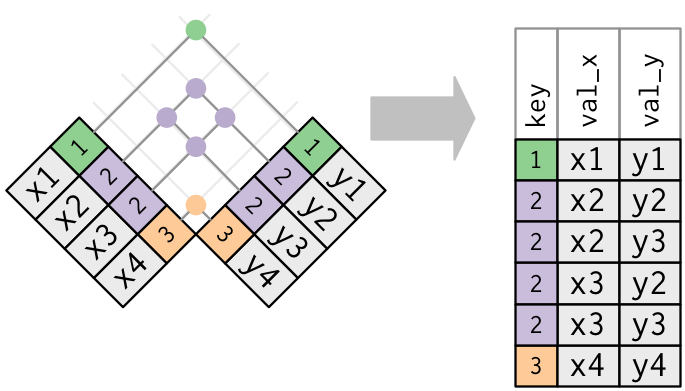

- .code110.bold[`"many-to-many"`].red[2]

]

.footnote.red[
1. 为 dplyrv1.1.1 的新增参数。
2. 通常来说，对两个数据集进行 `many-to-many` 的等值合并（_equi join_）并不合理，`*_join()` 函数在 `relationship` 参数取默认值 `NULL` 时会给出相应的警告信息。
3. `*_join()` 函数的其他参数：`keep`、`na_matches`、`multiple` 和 `unmatched`。
]

---
layout: true

### >> 筛选式连接（filtering joins）

---

.full-width[.content-box-blue.bold.font110[`semi_join(x, y, by = NULL, copy = FALSE, ...) | anti_join()` 保留 | 丢弃 `x` 数据集中在 `y` 数据集中找得到匹配的样本]]

```r
top_dest <- flights %>%
 count(dest, sort = TRUE) %>%
 head(10)
flights %>%
 filter(dest %in% top_dest$dest)
```

```
#> # A tibble: 141,145 × 19
#> year month day dep_time sched_dep_time dep_delay arr_time sched_arr_time arr_delay
#> <int> <int> <int> <int> <int> <dbl> <int> <int> <dbl>
#> 1 2013 1 1 542 540 2 923 850 33
#> 2 2013 1 1 554 600 -6 812 837 -25
#> 3 2013 1 1 554 558 -4 740 728 12
#> # ℹ 141,142 more rows
#> # ℹ 10 more variables: carrier <chr>, flight <int>, tailnum <chr>, origin <chr>,
#> # dest <chr>, air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>,
#> # time_hour <dttm>
```
--

```r
flights %>% semi_join(top_dest)
# 相同的结果，但更容易处理 filter() + %in% 所难以处理的存在多个 key 变量的情况
```

---
layout: true

### >> 非等值连接（non-equi joins）

---

.pull-left[

```r
# # input data by hand
# transactions <- tibble(
# company = c("A", "A", "B", "B"),
# year = c(2019, 2020, 2021, 2023),
# revenue = c(50, 4, 10, 12)
# )
transactions
```

```
#> # A tibble: 4 × 3
#> company year revenue
#> <chr> <dbl> <dbl>
#> 1 A 2019 50
#> 2 A 2020 4
#> 3 B 2021 10
#> 4 B 2023 12
```

```r
companies
```

```
#> # A tibble: 3 × 3
#> id since name
#> <chr> <dbl> <chr>
#> 1 A 1973 Patagonia
#> 2 B 2009 RStudio
#> 3 B 2022 Posit
```

]

.pull-right[

```r
# 1. Equality Joins:
transactions |>
  left_join(companies,
*           by = join_by(company == id))
```

```
#> Warning in left_join(transactions, companies, by = join_by(company == id)): Detected an unexpected many-to-many
#> relationship between `x` and `y`.
#> ℹ Row 3 of `x` matches multiple rows in `y`.
#> ℹ Row 1 of `y` matches multiple rows in `x`.
#> ℹ If a many-to-many relationship is
#>   expected, set `relationship =
#>   "many-to-many"` to silence this warning.
```

```
#> # A tibble: 6 × 5
#> company year revenue since name
#> <chr> <dbl> <dbl> <dbl> <chr>
#> 1 A 2019 50 1973 Patagonia
#> 2 A 2020 4 1973 Patagonia
*#> 3 B 2021 10 2009 RStudio
*#> 4 B 2021 10 2022 Posit
*#> 5 B 2023 12 2009 RStudio
*#> 6 B 2023 12 2022 Posit
```

.font120[🤔 如何解决？]

]

---

.pull-left[

```r
# 2. Inequality Joins:

# involves at least one join expression
# containing one of inequality
# conditions: >=, >, <=, or <.

transactions |>
  left_join(companies,
    join_by(company == id,
*           year >= since))
```

```
#> # A tibble: 5 × 5
#> company year revenue since name
#> <chr> <dbl> <dbl> <dbl> <chr>
#> 1 A 2019 50 1973 Patagonia
#> 2 A 2020 4 1973 Patagonia
*#> 3 B 2021 10 2009 RStudio
*#> 4 B 2023 12 2009 RStudio
*#> 5 B 2023 12 2022 Posit
```

]

.pull-right[

```r
# 3. Rolling Joins:
transactions |>
  left_join(companies,
    join_by(company == id,
*           closest(year >= since)))
```

```
#> # A tibble: 4 × 5
#> company year revenue since name
#> <chr> <dbl> <dbl> <dbl> <chr>
#> 1 A 2019 50 1973 Patagonia
#> 2 A 2020 4 1973 Patagonia
*#> 3 B 2021 10 2009 RStudio
*#> 4 B 2023 12 2022 Posit
```

```r
# 4. Overlap Joins:

# three helpers for overlap joins:
# between(), overlaps(), and within()
```

]

.font120[👉 `?join_by`]

---
layout: true

### >> 其它类型的合并

---
.pull-left[

.full-width.content-box-blue.bold.font120[`cross_join()`&ensp;/&ensp;`nest_join()`]

.font100[
+ `cross_join(x, y, ...)` 将数据集`x`中的每一行与数据集`y`中的每一行进行匹配，结果为`nrow(x) * nrow(y)`行

+ `nest_join(x, y, by = NULL, ...)` 保留数据集`x`，并将匹配的数据集`y`的数据作为新增的列表列，元素为 `tibble`（当在数据集`y`中找不到匹配数据时，列表列相应位置填充一个0行的`tibble`）

+ 从某种意义上说，`cross_join()` 和 `nest_join()` 是最基础的数据集连接操作函数，例如 `left_join()` 可视为 `nest_join() + unnest(.keep_empty = TRUE)`，`semi_join()` 可视为 `nest_join() + filter()`（`filter()`用来检查列表列中元素是否为0行的`tibble`）
]

]

.pull-right[

.full-width.content-box-blue.bold.font120[用 `y` 表中的数据来修改 `x` 表中的行]

.font100[

* `rows_insert(x, y, by = NULL, ...)` | `rows_update()` | `rows_upsert()`
* `rows_delete()`
* `rows_append()` | `rows_patch()`
]

.full-width.content-box-blue.bold.font120[合并多个数据集的行或列]

.font100[
* `bind_rows(..., .id = NULL)` `# do.call(rbind, dfs_list)`
* `bind_cols(..., .name_repair)` `# do.call(cbind, dfs_list)`
]

.full-width.content-box-blue.bold.font120[集合式合并]

.font100[
* `intersect(x, y, ...)`
* `setdiff(x, y, ...)` | `symdiff()`
* `union(x, y, ...)` | `union_all()`
]

]

---
layout: false
class: center, middle, hide_logo
background-image: url(imgs/xaringan.png)
background-size: 12%
background-position: 50% 40%

<hr color='#f00' size='2px' width='80%'>

.Large.red[_**本网页版讲义的制作由 R 包 [{{`xaringan`}}](https://github.com/yihui/xaringan) 赋能！**_]
